Conceptualize Production Layouts Using 3D

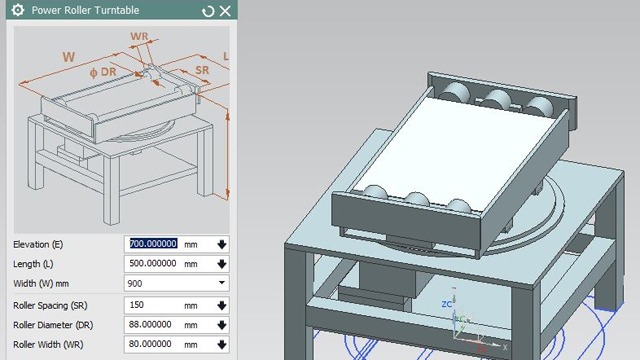

Line Designer is a complete production layout solution for manufacturing engineers. The parametric engine in NX enables you to efficiently work with manufacturing components and easily accommodate changes. Using the integrated system you can search, view and retrieve components across a fully classified library in Teamcenter, directly from NX.



Integrate Layouts with Production Processes

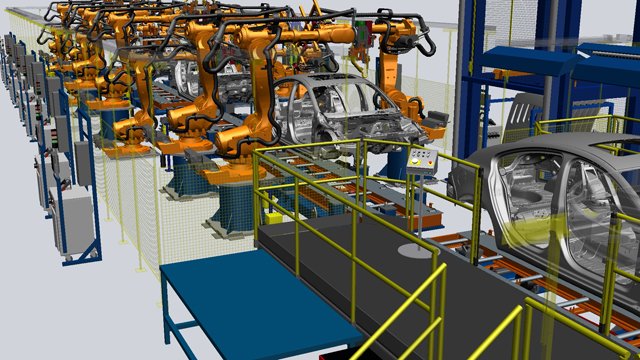

Siemens provides an integrated solution for production system design. The entire workflow is supported - from product and line design to commissioning. The Line Designer layout can be used to validate the manufacturing process with Tecnomatix Process Simulate, including PLC program validation in a virtual environment before use on real equipment.

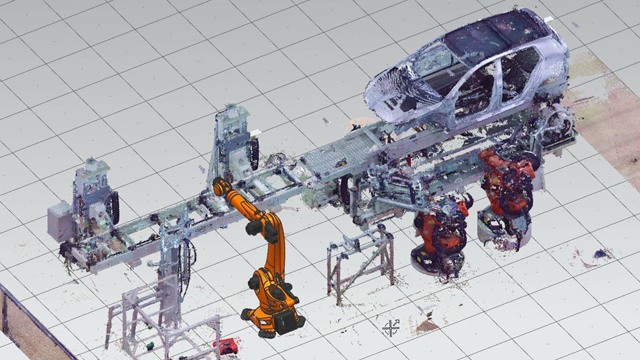

Leverage Point Cloud Scan Data for Factory and Line Optimization



Easily compare your virtual production facility layout model with your physical production facility layout. Bentley Technology digital point clouds scanned from existing brownfield environments can be used to create new factory items or modify factory models after on-site changes.

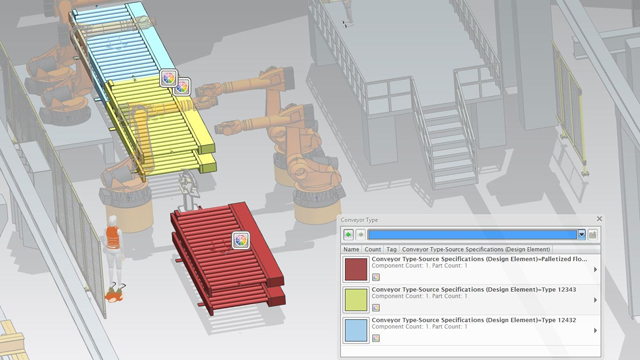

Visually Report and Document Factory and Line Designs



Browse PLM data in an interactive navigator to view the details. Visual reports are configured to display color-coded information on the manufacturing equipment, including component type, design changes, suppliers, investment cost and build dates. Visual reports can be managed and distributed to the entire enterprise.
